Advanced TEER Technology for Tissue Models

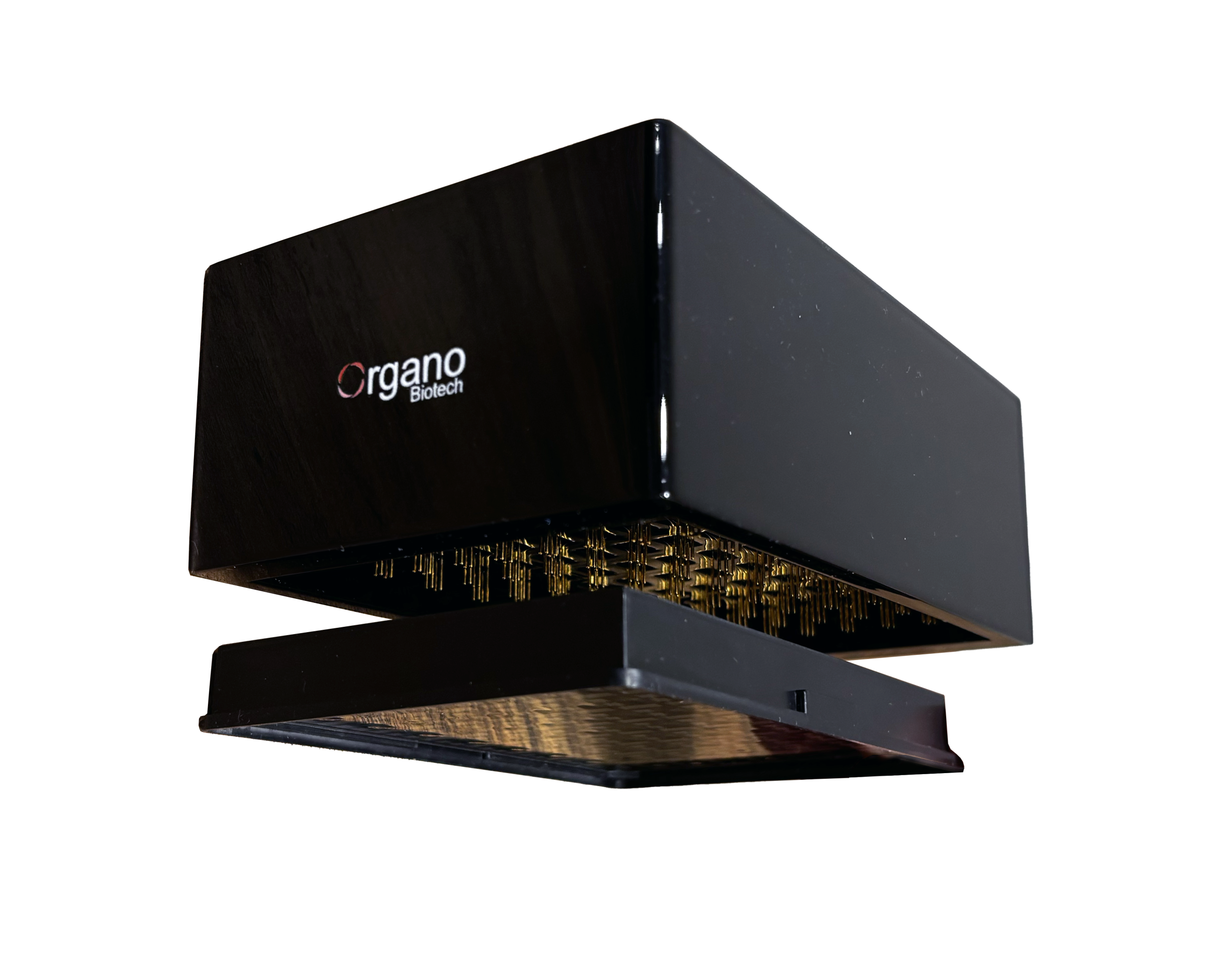

The electrode board includes a built in power cable and Wi-Fi connection, enabling users to power and access the device seamlessly via Wi-Fi and the AngioTEER software, which automatically records measured values in realtime. The device is designed to be compatible with IFlowPlate, AngioPlate, and UniPlate, and functions as a lid for seamless integration. Angio TEER enables automated, high throughput evaluation of tissue barriers, particularly for assessing drug induced toxicity in a time and dose dependent manner. Can safely operate in temperate range from 4 to 37 Celsius Advanced Programming capabilities

• For non-commercial research use only.
• We ship worldwide. Shipping costs by FedEx will be added during checkout.
• Click here to see the terms & agreements. By placing the order, you accept our terms and conditions.
• View the product specification
• This product is also available on Cedarlane

Product Code	B002; B002-2
Power Requirement	24 VDC; 2.5 Amp
Operating Relative Humidity	5 – 90% non-condensing
Operating Temperature	4 – 40°C
Altitude	<2000m
Storage Temperature	-40 to 50°C
Compatibility	Works with IFlowPlate (A001-2), AngioPlate, UniPlate, and UniPlate II
Range	Default range of 3,000-10,000 ohms, expandable to 50,000-200,000 ohms
Operational Space Required	+1-30 degrees tilt with single shelf: minimal height of 20 cm; 37.5cm of width; and 39cm in depth
Weight of Equipment	0.5kg
Warranty	1 year
Certification	CE
Software for Data Collection	N/A

BROAD AND ADJUSTABLE RANGE: Default range of 3,000-10,000 ohms, expandable to 50,000-200,000 ohms. HIGH THROUGHPUT AND AUTOMATED DATA COLLECTION: Supports data collection from up to 128 tissues, with real-time continuous measurement of 64 tissues. COMPACT AND EASY TO USE: Fully portable when powered by an external battery. Enables wireless data transfer to customized software for seamless data collection. COMPATIBILITY: Compatible with IFlowPlate384 (A001-2), AngioPlate384, and UniPlate384. DURABLE: Features easy-to-clean electrodes and a robust enclosure design for long-lasting performance.
