Flow Control for 3D Cell Culture Systems

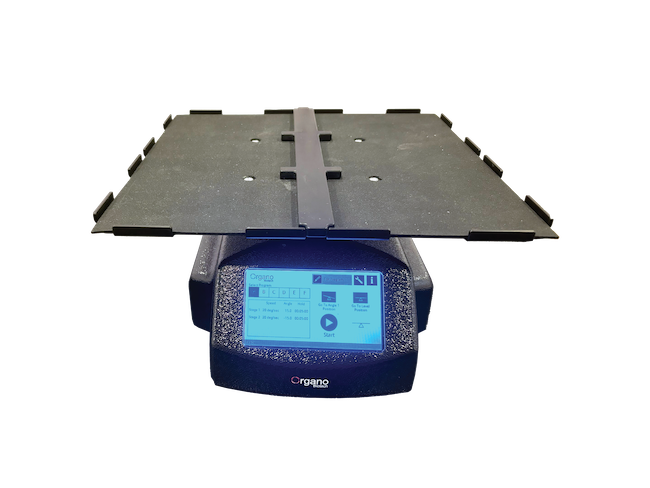

This system enables gravity driven perfusion at precise flow rates and durations, accommodating  multiple culture plates simultaneously for high throughput applications. When paired with UniPlate, the IFlowRocker delivers an in vivo like unidirectional recirculating flow of both culture media and immune cells, repre  senting the only commercially available system that offers gravity driven unidirectional perfusion culture. Can safely operate in temperate range from 4 to 37 Celsius. Holds 12 plates. Advanced Programming capabilities. One year warranty

• For non-commercial research use only.
• We ship worldwide. Shipping costs by FedEx will be added during checkout.
• Click here to see the terms & agreements. By placing the order, you accept our terms and conditions.
• View the product specification
• This product is also available on Cedarlane

Product Code	B001
Power Requirement	24 VDC; 2.5 Amp
Operating Relative Humidity	5 – 90% non-condensing
Operating Temperature	4 – 40°C
Altitude	<2000m
Storage Temperature	-40 to 50°C
Programming Capability	Continuous operation of a programmable cycle which includes: • Up to 6 programmable tilt angles (depending on the model). • Programmable speed to each tilt angle. • Programmable pause can be set or bypassed for each angle, from 1 second to 90 minutes. • Tilt range up to ± 30 degrees. • Pause time from seconds to 1-1/2 hours. • Uni-directional perfusion when used with UniPlate. • Bi-directional perfusion when used with IFlowPlate/AngioPlate.
Compatibility	Works with IFlowPlate, AngioPlate, and UniPlate
Operational Space Required	±30 degrees tilt with single shelf: minimal height of 20 cm; 37.5cm of width; and 39cm in depth
Weight of Equipment	4kg
Load Capacity	5kg, can hold 6 plates with optional stacking shelf (2nd level) that can hold additional 6 plates
Warranty	1 year
Certification	CE

• MIMIC IN VIVO CONDITIONS: Set angles and pause times to control the flow of the media. • INCUBATOR SAFE: Supports long-term use in CO₂ cell culture incubators. • ROCK IT YOUR WAY: Program any combination of angles, speeds, and pause times, including asymmetric rocking, for any flow conditions you want. • RELIABLE: The rocker will run for years. • LARGE CAPACITY: 5 kg (11 pounds) on platform. Platform with optional stacking shelf (2nd level) can hold up to 12 plates.
